கார் டிஜிட்டல் எச்டி டிஸ்ப்ளேயில் 10.1 அங்குல காலாண்டு பிளவு
  • கார் டிஜிட்டல் எச்டி டிஸ்ப்ளேயில் 10.1 அங்குல காலாண்டு பிளவு கார் டிஜிட்டல் எச்டி டிஸ்ப்ளேயில் 10.1 அங்குல காலாண்டு பிளவு

கார் டிஜிட்டல் எச்டி டிஸ்ப்ளேயில் 10.1 அங்குல காலாண்டு பிளவு

CL-S1019AHD-Q என்பது கார் டிஜிட்டல் எச்டி டிஸ்ப்ளேயில் 10.1 அங்குல காலாண்டு பிளவு ஆகும், இது 1080p வரை, பல காட்சி முறைகள், அகச்சிவப்பு ரிமோட் கண்ட்ரோல், பட சுறுசுறுப்பு, சரிசெய்யக்கூடிய பிரகாசம், மாறுபாடு மற்றும் வண்ண செறிவு, 10 ஆண்டுகளுக்கும் மேலாக மின்னணு காட்சிகள் மற்றும் கேமராக்களை உற்பத்தி செய்யும் கார்லீடர் தொழில்முறை. ஒத்துழைக்க வருக.
மாதிரி:CL-S1019AHD-Q

விசாரணையை அனுப்பு

தயாரிப்பு விளக்கம்

The following is a detailed introduction of 10.1 inch quarter split in car digital HD display, from which you can know the parameters of 10.1 inch quad view monitor.



If you have any interested or questions about 10.1 inch split screen car monitor, please feel free to contact us, and we will answer you as soon as possible.

10.1 inch quarter split in car digital HD display Main features

AHD quad monitor system

NEW TFT 10.1" panel , 16 : 9 image

Resolution : 1024x RGB x 600

Brightness : 400 cd/m2
4 video inputs ( 4 PIN aviation connector)

Single /Split /Quad view selectable

Auto-compatible with CVBS/AHD camera(108OP/7 20P/D1)

PAL/NTSC adjustable

Each channel has trigger wire

Trigger priority: CAM 2>CAM 1>CAM 3>CAM4
High-low voltage protection & short circuit protection

view angle:L/R:70,UP:50,down:70 degree
Built-in speaker (optional)
Power requirement: DC 9~32 v

Detachable sunshade

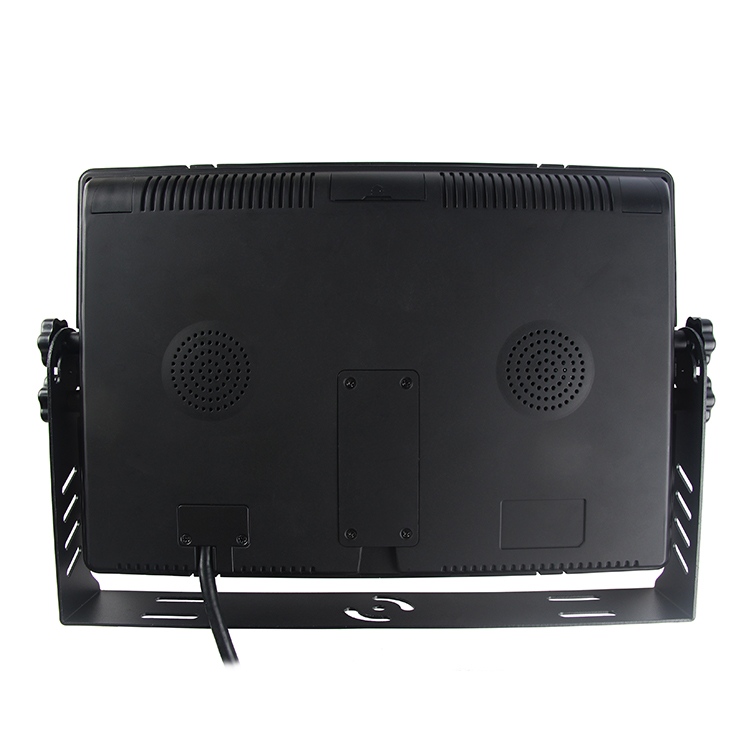

Metal U type bracket


Screen size 10.1''
Resolution
1024*RGB*600
Input interface
4HAD(pin)
AHD camera
Max 1080P
Trigger wire
4
Trigger priority
AHD2
Touch button
NO
Button with lamp
NO
PAL/NTSC system
YES
Compatible camera
AHD/CMOS/CCD
Screen ratio 16:9
Power Volt. DC 9V-32V


10.1 inch quarter split in car digital HD display

10.1 inch ahd quad monitor

சூடான குறிச்சொற்கள்: கார் டிஜிட்டல் எச்டி டிஸ்ப்ளே, உற்பத்தியாளர், சப்ளையர், வாங்க, தனிப்பயனாக்கப்பட்ட, சீனா, மலிவான, குறைந்த விலை, சி.இ.
விசாரணையை அனுப்பு
தயவுசெய்து உங்கள் விசாரணையை கீழே உள்ள படிவத்தில் கொடுக்க தயங்க வேண்டாம். நாங்கள் உங்களுக்கு 24 மணி நேரத்தில் பதிலளிப்போம்.
